Hardware for the connected shop floor.

MECAFLOW software starts with a QR code. When you're ready to automate data capture, the HUB takes over: a rugged tablet, a non-invasive Pulse sensor and a mobile camera. Non-invasive, installed in minutes, assembled in Switzerland.

Request a demo → See the range
0 PLC wiring Works on any machine Assembled in Switzerland 🇨🇭
MECAFLOW HUB — shop floor supervision screen
Progressive rollout

Three hardware levels. Climb the stairs at your own pace.

Each level adds more automation, without ever modifying the machine.

LEVEL 1

Manual entry

🖐 Tablet + QR
  • Rugged tablet mounted at eye level
  • The operator scans and logs
  • Zero sensors, ready right away
LEVEL 2

Connected

📡 Pulse sensor
  • Clips onto the signal beacon (machine state)
  • Non-invasive cycle counting
  • OEE measured, not estimated
LEVEL 3

Integrated

🔌 Machine connection
  • Open protocols (MTConnect, OPC-UA, FOCAS)
  • Rich, cycle-by-cycle data
  • 100% automatic data capture

The software and the full escalation path are detailed on With or without a sensor.

The tablet

A rugged tablet, built for the shop floor

The hardware is deliberately simple and robust: a proven tablet in a reinforced rugged case, mounted magnetically — no drilling, no PLC wiring. It shrugs off chips, dust and oil.

  • Tempered glass · IP54 rated · overhanging frame
  • Magnetic mount, VESA plate or rail mount
  • USB-C · WiFi + 4G · local buffer if the network drops
  • Configured, branded and tested in Switzerland
MECAFLOW HUB mounted on a machine
The sensor

Pulse — real OEE, without touching the machine

A sensor that clips onto the signal beacon (or reads the machine signal) and counts cycles. No PLC wiring, no machine too old — even a 30-year-old lathe works.

  • Non-invasive · installed in minutes
  • Availability × performance in real time
  • Quality logged with one tap on the tablet
  • OEE becomes measured, not estimated
CNC lathe in production, fitted with a signal beacon sensor
New · pilot

HUB Vision — the eyes of the shop floor

A magnetic, battery-powered camera that you move from machine to machine. It sends photos of the process into MECAFLOW — on an interval, on demand, and automatically when a breakdown is reported. "Is it still running?" — answered in one image.

  • Mobile, magnet-mounted per machine (magnet + battery)
  • Compatible with IP cameras (HTTP snapshot / RTSP)
  • 7-day history
  • ⚖️ Process photos only — compliant with Swiss OLT 3 Art. 26, never for monitoring people
MECAFLOW HUB shop floor supervision

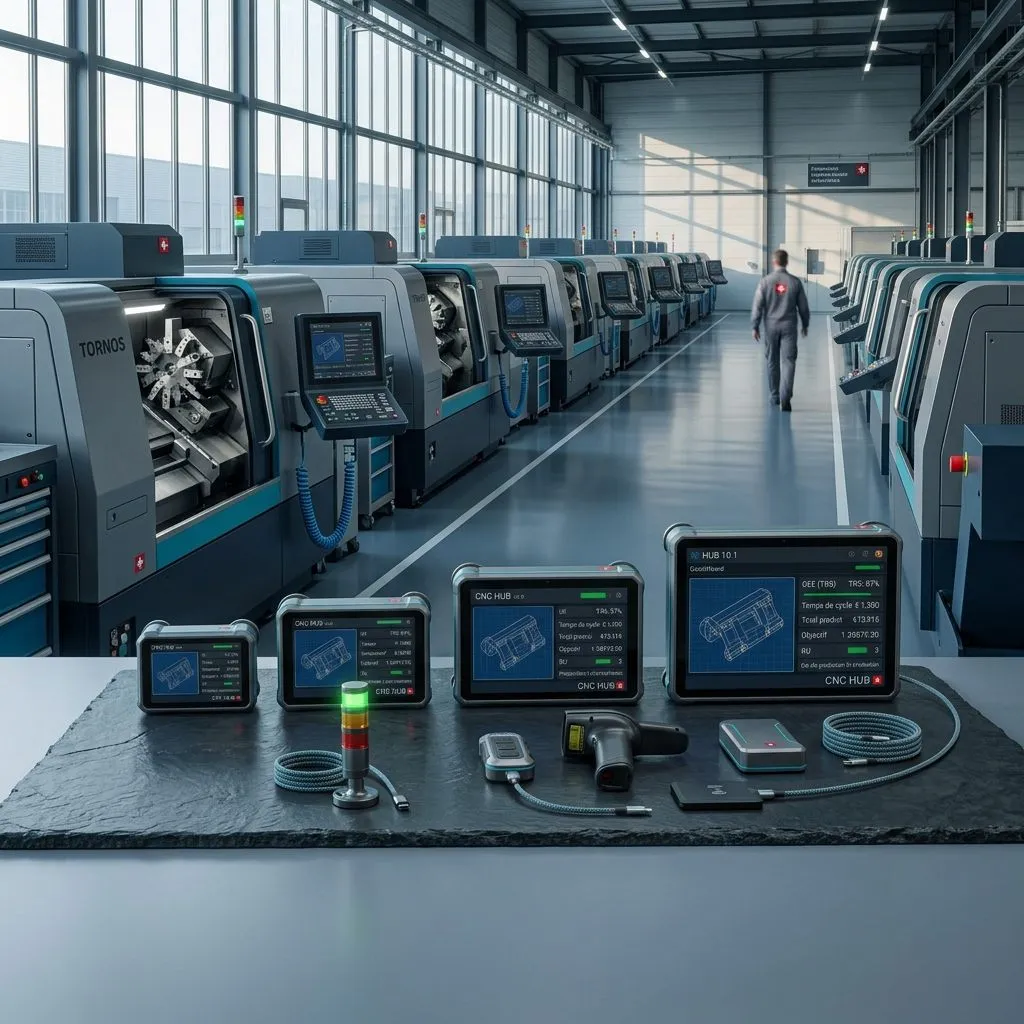

3 formats · 1 system

From the machine to the shop floor wall

The same web platform (HTML) in three sizes. You reassign and update screens remotely — no site visit, no firmware.

S
On the machineCompact, magnet-mounted on the housing — job and status right in front of the operator.
M
At the workstationLarger — job, OEE, cycle time, estimated finish time.
XL
On the wallThe Wall: every machine at a glance, full supervision.
The MECAFLOW HUB range — S, M, XL sizes
Installed in 30 seconds

Out of the box, mounted, activated

The HUB, its magnets, its cable and a "Scan to activate" card. Mount it (magnetic, no drilling), scan the QR code, it's linked. No installer, no IT project. Swiss Made kit.

  • Magnets + cable + QR activation card
  • No installer, no IT project
  • Dedicated maintenance / service tablet available
  • Express swap if something breaks
Precision machine shop fitted with MECAFLOW HUB
Interested?

Let's talk about your shop floor

Tell us about your machines and what you need — we'll get back to you with a demo and a price. No fluff, no commitment.

Or reach us directly: [email protected]

Request a demo →See the product
